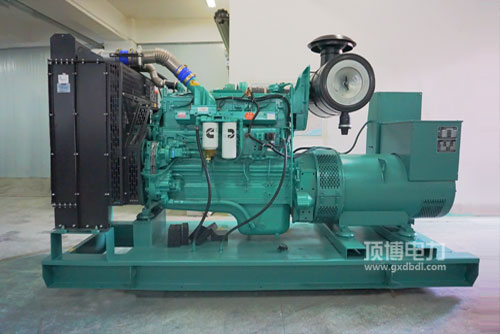

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用热车机汽油经济社会性好: 发达的汽油抑制操作机系统，独特的的STC、ESTC 分等级抑制操作机系统，特别的设计的汽缸顶端烧燃室，压力输送汽油，宽裕雾化吸入，烧燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用汽车发倾向瞬态能力表现出色: 完美无缺的汽车发倾向总布局规划，互相配合康明斯与众不同的EFC系统化，调控精确高，回应周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打着机升公率高: 大体装修设计宽敞.性能装置恰当，工作稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50能够满足我们非城市道路3、时候及南美Tier2. Tier 3排放物标准标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可获得性好， 发起机自动运行及维护与调养调养连锁便利店，生产损坏后可及时更换。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率的范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯带发电用发起机的优点和缺点：球重量轻， 缩短变高， 格栅板冷空气热处理，便于打火，联通车机开关电源的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号查询	普遍公率(kW)Prime Power	自备额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
